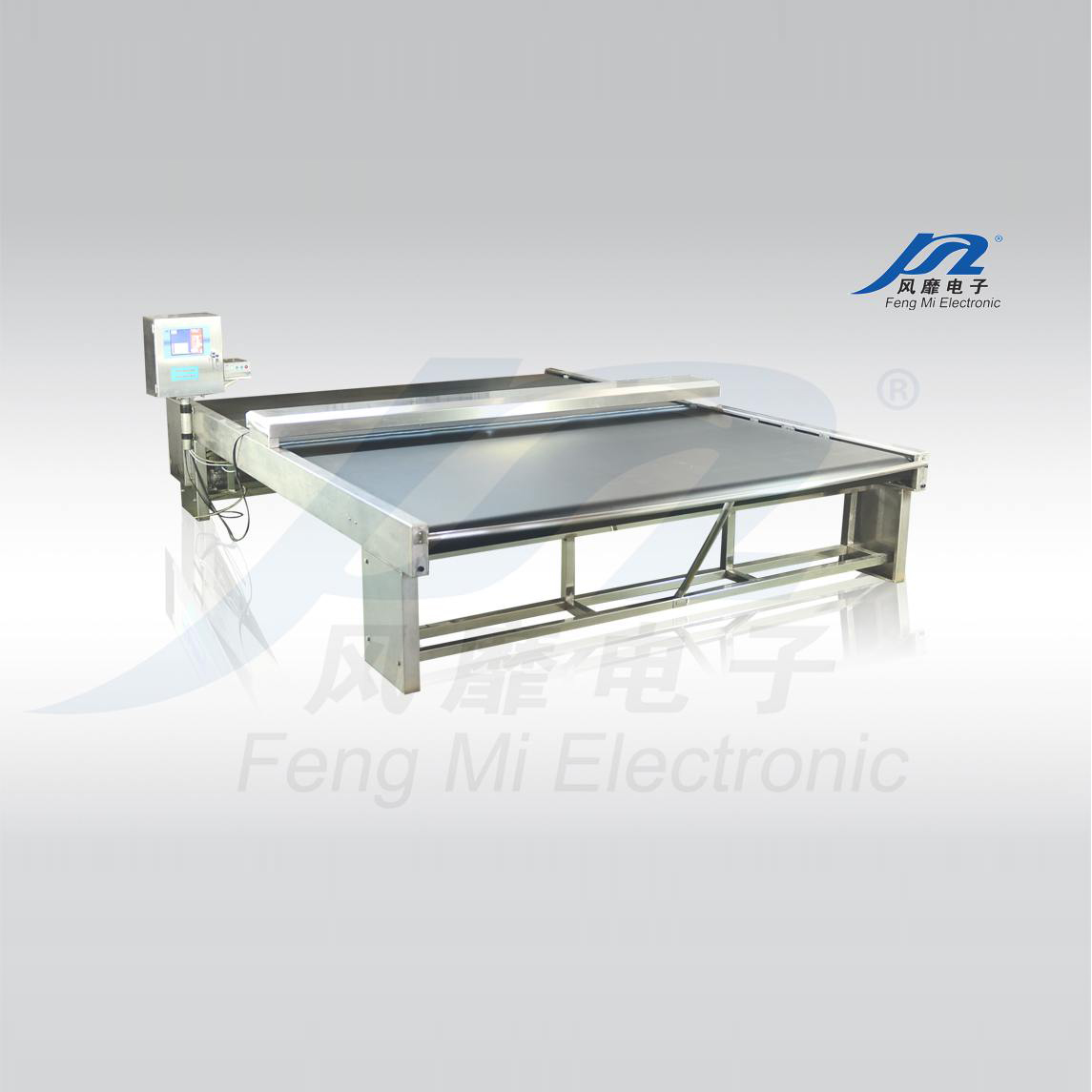

1. notification for leather measuring machine(for auto type, usual type and for shoe factories)
①air pressure: Make sure the pressure under 2-4kg. Make sure the system doesn’t leak. And make sure the adjust function of the filter is good.
②temperature: For domestic foil, the temperature should be 110-120 centigrade. For imported foil, the temperature should be 120-140 centigrade. Above temperature is to make it to print clear.
Remarks: this device needs to be heated after turn on the computer. If you turn off the computer, the heating process stops.
③make sure the foil is installed well.
④feed the leather correctly. When you measure the large cow leather on auto leather measuring machine, you should assure the space between each other or it will cause stamping failure. The space needs to between 40-50 cm.
⑤Please set the right location of the stamping. Usually it should stamp under the edge of the leather 4-5 cm to the edge.
⑥under no circumstance should you add lubricating oil on the copper. Or it will cause malposition.
⑦when you finish the measuring, you should not cover the machine immediately especially the stamping device or it will cause fire.
⑧ The stamping device needs to be clean frequently to make sure its best performance.
⑨The air filter should check and see if it is with oil to make sure its performance.
2. notification for vertical type of leather measuring machine
①The baffle of the machine is make for one or two workers. Under the large quantity, it is suggested to put down the back baffle to allow two persons to work to level up the efficiency.
② Usually for shoe factories, there is no need to print the bill. If so you need to turn off the printer or the computer will pause after a bale.
3. notification for raw leather measuring machine
A: usually we use roller or nylon wire to transport the leather to avoid the friction which causes error during measurement.
B: usually we use stainless steel frame and separated processing system to best protect the electric system. It need to be protect and prohibit pollution.
The bearings of the rollers should be added oil to resist rust. Water and direct sunshine is prohibited.
Warning: If it is used in glass house which there is enough air and sunlight in, light baffle is needed. Or it will affect the accuracy
4. notification for GLGWP
① It is only for measuring the wet blue leather before samming. If it is already be squeezed, please refer to 3.
②It uses the infrared ray scanning system. As the color of the leather changes sometime, it would appear error. It’s normal. If you happen to meet this condition, you need to use the sample leather to check and adjust.③The environment of the leather measuring machine should keep away of sunshine.
5. notification for vertical type wide spread roller leather measuring machine
A: Its scanning device can be rolled separated. I can transport and measuring during the transportation.
B: Each scanning system is an independent unit. It is synchronized and with tracking and storing data function.
C: technical advantage: During the working, the main roller is running and the scanning cells inside can stop at your will. For soft leather, it can spread the leather to increase the accuracy.
A when the machine is running, you could not pause the scanning roller at your will by hand or it will hurt the nylon roller.
B when you measure the larger leather, there should be at least two workers.
③ according to the class and type of leather, if what you measure is a big working platform, a process table is recommended for working.
6. notification for vertical-horizontal type leather measuring machine
①technical parameter: It is a mix of vertical type leather measuring machine and horizontal type leather measuring machine. At the feeding entry, it is like the vertical type of machine because it can spread the leather. At the exit side, it is like the horizontal machine because it can automatically stamp on the leather.
A. This machine could not measure pig leather.
B.at the feeding side, it is steel pressure roller. Be careful when you feed the leather.
③ Others please refer to auto leather measuring machine.
7. other notices
① All the machine is to process according to steps that is
Turn on: turn on the main power→turn on the transport→turn on the computer, print
Turn off: turn off the computer→turn off the printer→turn off the transport→turn off the main power
② If you use self-generating electricity, please turn off the computer first and wait and turn on until there is stable electricity. If the electricity is cut off, please turn off the machine and wait for next time.
③ It is avoided to use the machine in rainy day with thunderstorm or it will cause failure to the main computer.
④ Each time you use the machine, it is needed to use the sample leather to check its accuracy in case loss.
⑤ It needs to be checked and protected regularly especially the bearings, the transformer and etc. Do not put heavy things on the machine.
